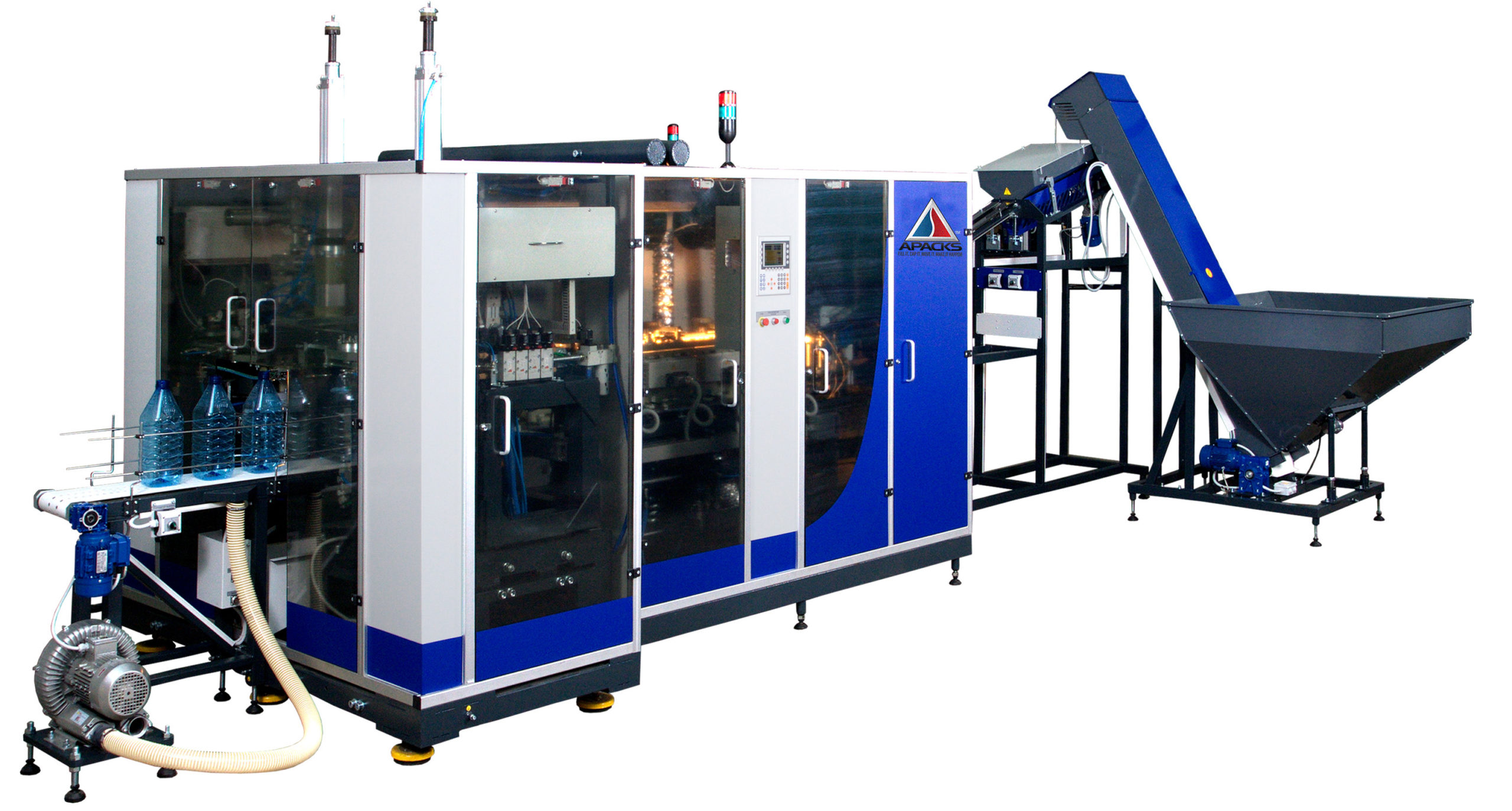

This blow molding machine can create bottles from three liters to ten liters and can produce 1600 ten liter bottles per hour. The high machine performance is provided by mold closing system analogous to rotary machines. The stretching rods were developed specially for thick-walled preforms for five-ten liter bottles. This guarantees blowing process stability and exclusion of deformation.
Specification:
| Output for 3-5 liter bottles | 1600 bottles/hour |
| Output for 10 liter bottles | 700 bottles/hour |
| Blowing pressure bar | Up to 30 |
| Low pressure bar | 8-10 |
| High pressure air demand, m³ /min | 5 |
| Low pressure air demand, m³ /min | 1.3 |
| Cooling liquid temperature f | 44-48 |
| Voltage supply | 400V/50Hz |
| Installed power, kW | 46 |
| Overall dimensions, mm | 9200x2200x2740 |
| Weight kg | 4600 |
APACKS Rotary Blow Molding machines enable users to produce standard containers at rates of 2,250 bottle/hour/cavity, complex custom containers such as heat set containers for hot filling at rates up to 1,800 bottles/hour/cavity, or handling and blowing of very light containers with extremely high preform stretch ratios. Today, there are seven models available. The number in the acronym indicates the number of blowing cavities. The model SFR 9/27 is equipped with 9 stations able to carry either 9 standard shell molds or 9 triple-cavity molds for a total of 27 blowing cavities.
Using unique and patented technology, the APACKS Linear Bottle Blow Molding Machine achieves high production outputs and excellent container quality. The mechanical operation, is completely electrical, allowing more time for the stretch-blow molding process. The efficiency of the oven heating and ventilation does not impose thermal conditioning limits on the preforms. The electrical stretching gives precision and flexibility to the process and guarantees full repeatability.
The APACKS ECS Integrated Systems provides solutions to a wide variety of requirements. The ECS range starts from the raw material, the resin, and takes the process through to the finished container without any interruption and with total automated control of all phases of production. Costs associated to traditional two-step processes such as preform handling, preform storage, preform cooling and reheating are not part of the integrated process. These systems are extremely versatile and can produce a wide range of standard and customized, containers: lightweight bottles for standard or hot fill use, ultra clean or aseptic bottles, pasteurizable containers, warm filled bottles, wide mouth jars, round or square shaped bottles, oval, asymmetric or tailor-made containers.
Sincro Tribloc is an innovative system that incorporates the production, labeling and filling/capping of PET containers in an integrated system. Sincro TriBloc production output ranges from 12,000 to 48,000 b/h.
