Automatic Gravity Filling Machine

Time Based Automatic Filling Machine

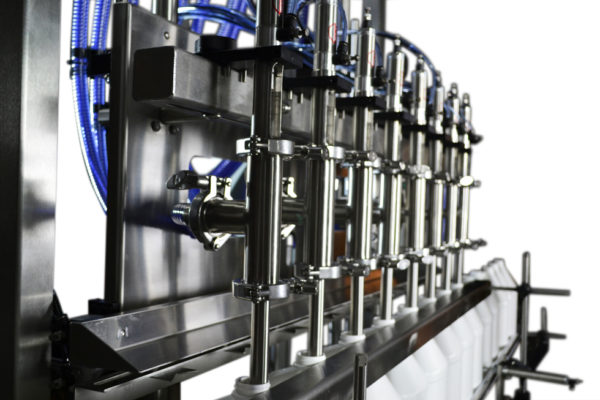

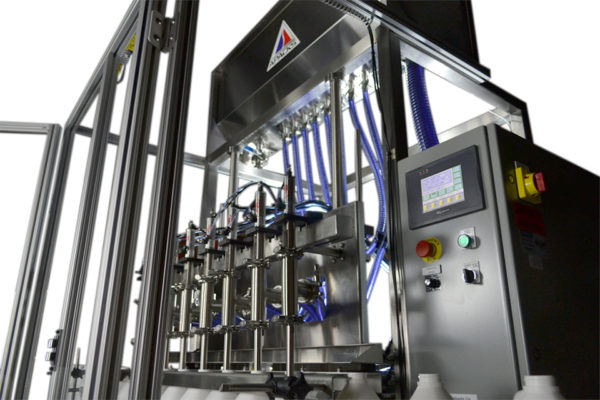

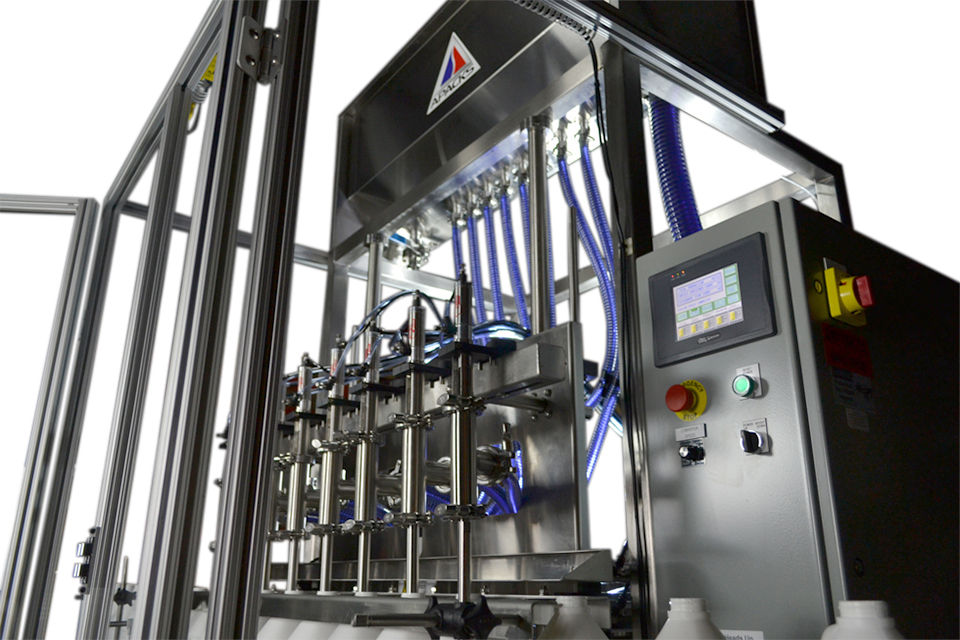

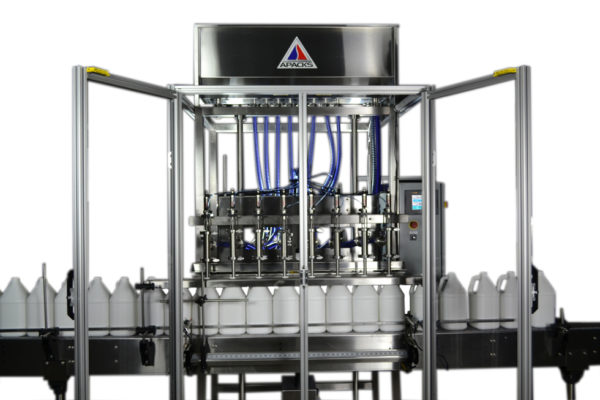

The Automatic Gravity Filler is ideal for filling thin liquids with consistent viscosity. Volumetric time gravity filling method produces repeatable and accurate fill volumes. The Gravity Filler is manufactured with a heavy duty 304 stainless steel, tig-welded tube frame and reservoir. It also features user friendly PLC controls and touch screen HMI panel. This filler is capable of accommodating up to 16 heads, and utilizes an automatic product level sensing float system for filling efficiency. Many more features and options are available for even more versatility and customization. Gravity Fillers are utilized by the food and beverage, cleaning and specialty chemical, pharmaceutical, cosmetic and personal care industries for various filling projects. The Automatic Gravity Filler can be built to suit a wide variety of applications including sanitary, hazardous, flammable, and corrosive products and environments.

Spec Sheet Download

Simply click on the link below to open the pdf. If you would like to download it, please right click, and then choose save as.

Download Spec Sheet



  • Standard Construction: Heavy duty 304SS free-standing frame
  • Number of Fill Heads: 1 to 16
  • Reservoir: 304SS tank is standard
  • Filling Size: 0.5oz to 5gal
  • Power Requirement: 115VAC, single phase, 20 amp, 50-60Hz
  • Air Requirement: 3-6CFM @ 90PSI clean, dry, compressed air
  • Dimensions & Weight: Subject to model configuration 04SS fill head bar
  • User friendly PLC controls with touch screen HMI
  • 1/100th second individual fill head control 316SS drain valve with Teflon seals
  • Matching throttle valve for each fill head valve
  • Pneumatic Indexing Gates (entry and exit)
  • Automatic product level sensing float system
  • Front panel Start and emergency Stop On/off and speed controls for conveyor
  • No bottle/no fill sensor
  • Bottle backup sensor (downstream) delays operation until jam is cleared
  • Mounted on 4 threaded leveling legs
  • Water
  • Fruit Juices
  • Extracts
  • Liquid Tea
  • Liquid Coffee
  • Food Coloring
  • Vegetable Oil
  • Milk
  • Wine
  • Tomato Juice
  • Some Salad Dressings
  • Perfumes
  • Essential Oils
  • Ink
  • Thin Liquid Soap
  • Shampoo
  • Light Makeup Remover
  • Motor Oil
  • Urethane
  • Silicone
  • Urine
  • Alcohol

Linear Hot Product Maintenance Upgrade for Automatic Gravity Filler

  • Enclosed cabinet protects operators from hot components
  • Upgrade Reservoir to 304SS dual wall, with oil drain ports
  • Heating oil for reservoir, maintains temperature, with heater and sensors
  • Filler must have 230VAC/3phase power
  • Upgrades standard control box for hot product system control, and provides capacity for controlling fill head hose and nozzle temperature controls (sold separately for configuration purposes)

Hazardous Location Upgrade

  • Upgrades control system from standard Nema 12 to class 1, division 1, groups C&D enclosure
  • Replaces standard photoelectric sensors with intrinsically safe fiber optics
