Shrink Sleeve Labeling Machine

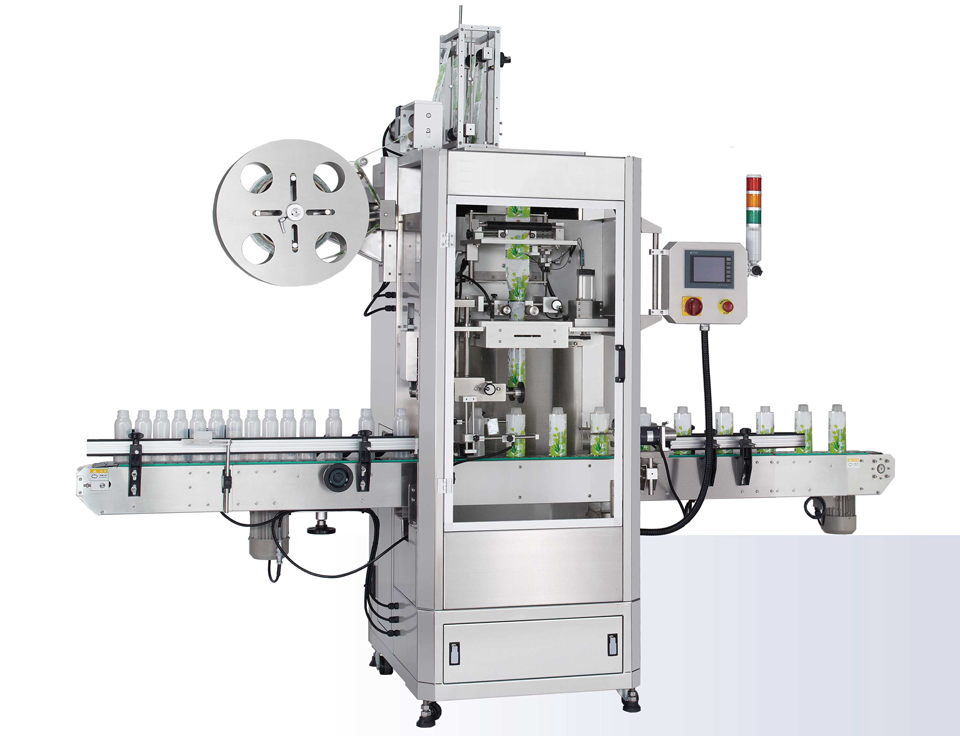

High-speed automatic shrink sleeve labeling machine

APACKS series of high-speed shrink sleeve labeling machines is designed for full body sleeve labeling applications, as well as neck and cap banding, tamper-evident applications. With the APACKS shrink sleeve labeling models differing only in size and labeling speed, the SL Series is well-suited for a wide variety of industries and applications, although the machines’ tamper-resistant “neckbander” is ideal for beverage, pharmaceutical and cosmetic companies.

SKU: 3V4MP6LU08 Categories: ,



Features

  • Designed for full body sleeve labeling applications
  • Touch-control screen and an advanced Programmable Logic Computer (PLC)
  • Easy operation and quick change-over
  • 304 stainless steel and anodized aluminum
  • Acrylic interlock door
  • Accommodates a wide range of label roll sizes
  • Management setting with password protection
  • Multi-Alarm settings, through buzzers and flashing lights, alert the operator about various errors (e.g., bottle jams, bottles falling, labels running out etc.)

Specifications

  • Supply Voltage: 220/380 VAC 50/60 HZ 3 Phase
  • Power Consumption : l.2KW
  • Sleeve speed : 300BPM Max
  • Bottle Diameter: 30 ~ 120mm
  • Height of Bottle: 250mm Max
  • (1) Chuck for one cap size
  • Range of Label Thickness : 0.035mm ~ 0.08mm
  • Inner Core : 127 ~ 254mm
  • Conveyor Specification : llOmm (W), 900mm (H)
  • Dimensions: 2000mm(L) x 1050mm(W)x 2300mm(H)
