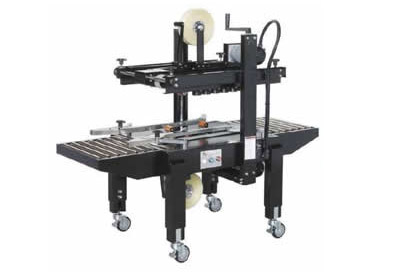

Semi-Automatic Top & Bottom Drive Case Sealer

The Champion 800-20 is a Semi-Automatic Manually Adjustable Top and Bottom Belt Drive Case Sealer that is built with the operator and maintenance staff in mind. Threading of the Champion 502 or 503 tape head is very simple and the head is designed to be virtually maintenance free.

SKU: Champion 800-20 Categories: ,



The adjusting hand crank can be located on either side of the machine for operator convenience and comfort. A feature of the 800-20 is the ability to handle “tall tippy” cartons. Our tape heads are durable, simple to thread and have few moving parts making it uncomplicated to work with.

Standard Features:

  • Top & Bottom Belt Drive
  • Two – 502 Easy Load 2″ Tape Heads (Top & Bottom Seal)
  • Top Tape Head can be repositioned for Off Center Seal
  • Set of 4 locking casters
  • Top Squeezers help to keep Top Seam closed
  • Pop out and interchangeable Tape Heads
  • Stainless steel roller bed
  • Adjustable legs from 22″-32″ with Casters
  • Infeed Table (16″ in Length)
  • Exit Table (16″ in Length)

Specifications:

  • Minimum Carton Capacity: 4.75″L x 6″W x 4.75″H (Custom carton sizes available)
  • Maximum Carton Capacity: ~ L x 20″W x 20″H (Custom carton sizes available)
  • Electricity Required: 120 V, 60hz, 10amp
  • Belt Speed: 77 Feet per minute
  • Machine Footprint: 64.5″L x 29.75″W x 57.25″H (Length includes tables)
  • Machine Shipping Weight: 385 lbs. (on a pallet)
