Semi-Automatic Pressure Overflow Filler

Visually Consistent Semi-Automatic Filling Machine

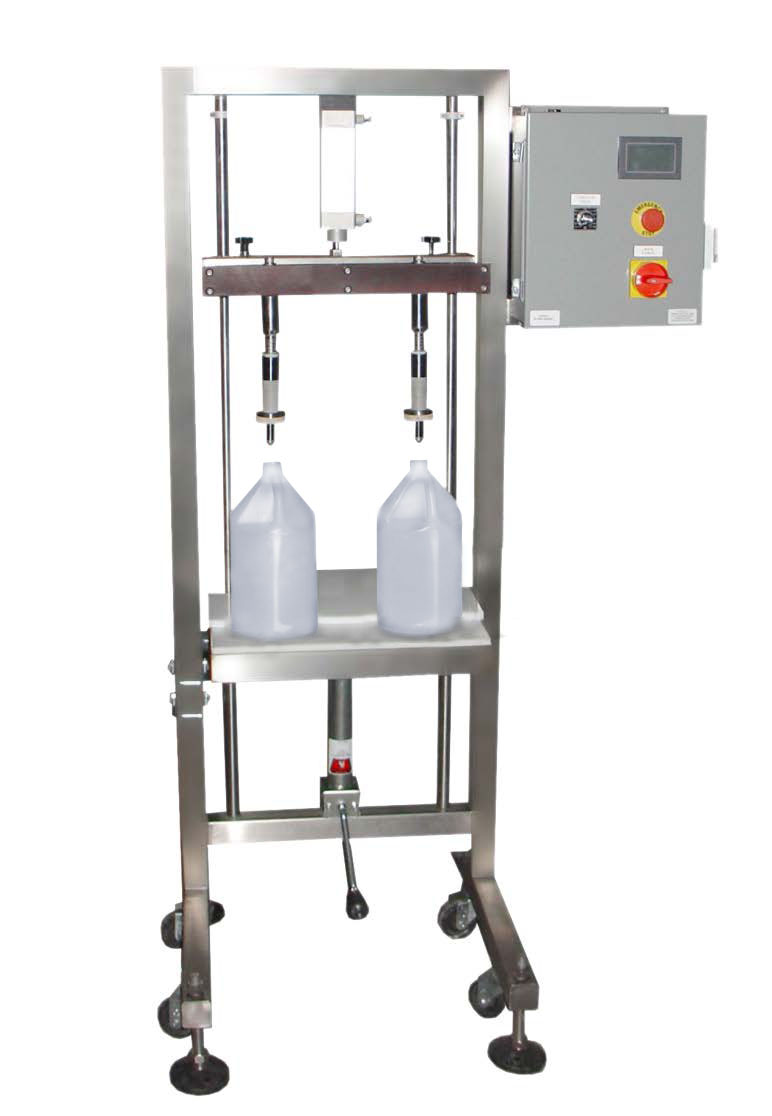

APACKS Semi-Automatic Overflow Filler is typically used in packaging applications where a consistent visual (cosmetic) fill level is required. The desired product to be filled is held in a stainless steel reservoir, then pumped into a manifold to disperse product to each of your filling nozzles. Once the product reaches your desired cosmetic fill level in each bottle, excess product or foam overflows back to the reservoir. Advantages of the Overflow Filler include even fill levels, variable pressure pump speed control (to reduce foam), and ease of operation. This Filler is manufactured with a heavy duty 304 stainless steel, tig-welded frame and is available with 2 Fill Heads. It also comes standard with PLC Controls and touch screen HMI, stainless steel Filling Heads, and Product Supply Pump (dependent on product), plus many more features. Options are available for even more versatility. Overflow Fillers are commonly used for filling beverages and other thin products.



Standard Features:

  • User friendly PLC controls with touch screen HMI panel
  • Stainless steel filling heads and filling nozzles (nozzles purchased separately)
  • One-way valve to keep heads full of product between filling cycles
  • Product return (overflow) to be rejoined and returned to bulk tank
  • Fill head pump (dependent on product)
  • Foot pedal
  • Cycle selector switch foot pedal or auto mode
  • Mounted on 4 heavy duty threaded, leveling legs
Specifications:

  • Standard Construction: Heavy duty 24″ wide, 304SS tig-welded frame
  • Number of Fill Heads: 2
  • Filling Size: 2oz to 1gal with upgradable capability
  • Filling Speed: Dependent on operator & products
  • Power Requirement: 110-120VAC power, 50-60Hz
  • Air Requirement: 2-5CFM @ 90PSi clean, dry, compressed air
  • Dimensions & Weight: Length – 38.97″ (990mm) Width – 36.24″ (921mm) Height – 69.81″ (1773mm) Weight – 570lbs (258.55kgs)
  • 316SS or plastic wetted contact parts
  • Product supply pump
  • Modifications for large/miniature containers
  • Custom applications
  • Special electrical requirements
  • Additional remote E-stops
  • Sanitary, hazardous, flammable and corrosive environment construction
