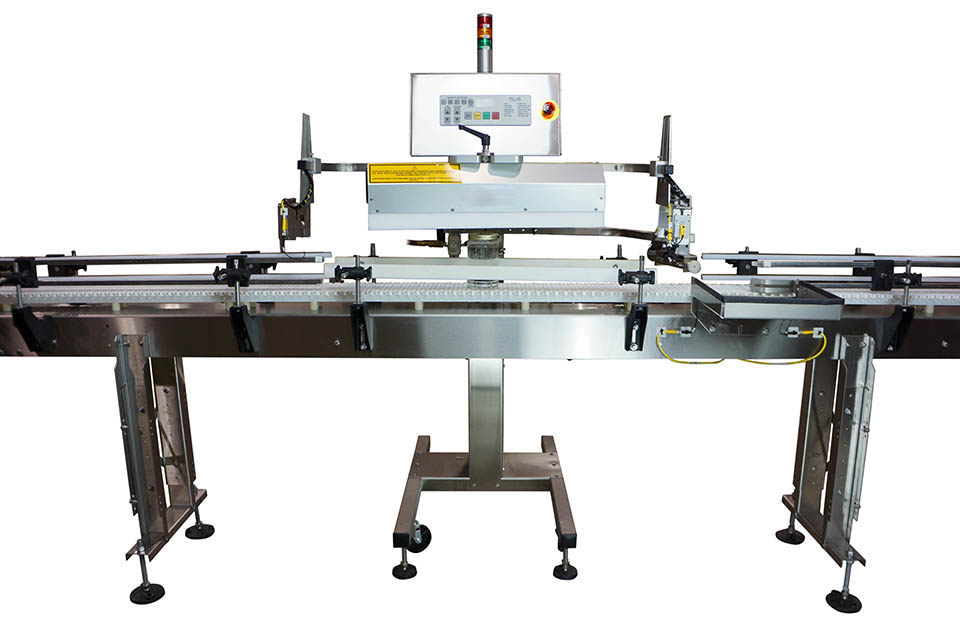

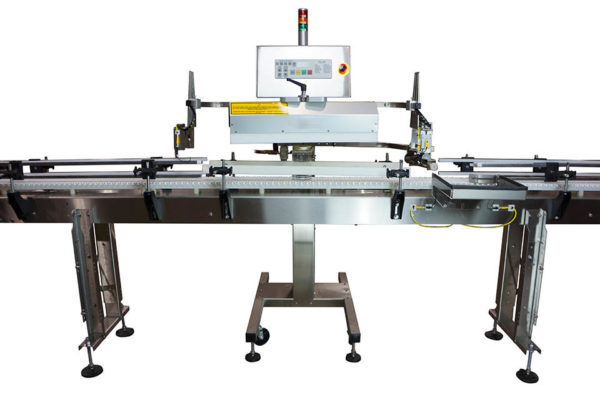

Portable Induction Sealing System with Integrated Conveyor

Our SIL-2600 Portable Induction Sealing System incorporates a 5′ conveyor and a stainless steel cart with casters so you can easily roll it into any production situation. It has a coil height indicator and 20 inches of coil height adjustment to unitize all components of the system. It’s waterless so it is 1/3 the size of water cooled induction sealing systems with the same capabilities.

SKU: SIL-2600 Category:



  • Waterless Systems – No water, no filters, no pumps, no radiators, no flow switches, no mess
  • Compact, lightweight – up to 1/3 the size of water-cooled systems
  • Fast, easy set-up and coil changeover – No tools required for coil set-up or changeover
  • Independent power supply and sealing coil – Eliminate possibility of sealing coil causing power supply to over heat
  • Coils with “quick lock” feature – The coil is easily positioned and locked in place with this unique Pillar device
  • Precision coil height indicator – Indicates adjustment to within .001 of an inch to insure correct coil height
  • Customer run contacts – Interfaces to other machines or devices to indicate run status of sealer
  • Adjustable loss of seal alarm contacts – Interfaces to warning alarms or lights to indicate possible non-sealing condition with respect to output
  • Diagnostic indicating lights – Aids in trouble-free operation
  • Stainless steel – Sturdy, easy to clean and maintain, for use in toughest of applications
  • Customer interlock contacts – Interface to allows customer to stop machine from external equipment or location, manual restart
  • Auto-Start – After initial start-up, allows delivery and removal of power to the coil by an external contact
  • Membrane control panel
  • Microprocessor controlled – Highly engineered proprietary technology from Pillar
  • CE, ETL and/or EMC approved – Equipment and components are ETL, CE or EMC listed and approved when appropriate

Power Requirements

  • 208 or 240VAC
  • 50/60 Hz, 1Phase
  • 11.3 Amps
  • Missing foil, loose cap, stalled bottle detection package – Significantly reduces chances of shipping unsealed product
  • Reject device with verification – Removes faulty bottles as detected by detection package and confirms removal from conveyor
  • Deluxe alarm and light package – We wires the lights and alarms to the run contacts and loss of seal contacts for you
  • Portable or Stationary – Unitized portable cart fully integrates system or conveyor mounted stationary coil support
  • Output transformer load compensating selector switch – No tools required to match sealer to the load conditions for those with range of foil diameters
  • IQ/OQ validation documentation – Professional installation and operation qualification with factory seal of authenticity
