- External Hopper/Elevator*
- 30 cubic feet of capacity
- Stainless steel bin
- External 48 inch diameter Disc Sorter with stainless steel liner
- Urethane covered drive disc
- Adjustable air jets and paddle wheel assemblies.
- These external components can be traded-in for larger versions in the future. Upgrade without buying a whole new system!
- Parallel orienting belt assembly
- FDA approved belting
- Adjustable to suit different bottle dimensions
- Change part for one size container consisting of:
- Sorter Disc Plate (PP)
- Allen-Bradley MicroLogix 1000 PLC
- Includes our exclusive Reversing Disc Sorter to automatically correct situations inside the disc sorter
- Variable speed DC drives
- Easy to use, digital push button potentiometers
- Photoelectric controls for automatic operation includes conveyor backlog control
- Sturdy tubular support frames
- Exclusive Palace machine finish made of durable clear-coated “Steel-It”
- Interlocked guard package with clear Lexan panels
- Unscrambler installs over your existing conveyor and discharges the container at 36″ ( /-2″)
- 220 VAC, 15 amp electric required with separate ground
- Clean compressed air required at 80 psi
Bottle Unscramblers
Automatic Bottle Unscrambling System
Bulk Bottle Unscrambling Machine

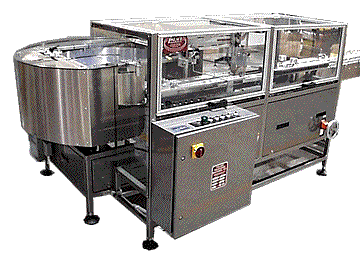

Our Model TAU-CB42-PP Modular Bottle Unscrambling System is our most versatile Unscrambler for the bottling industry.
